Width 2m-4m Composite Geotextile Plastics Geonet Drainage Net for Project Solutions

Ask Lasest Price
Model Number :	NLGDN
Supply Ability :	20000 Square Meter/Square Meters per Day
Price :	$1.10 - $2.70/square meters

Add to Cart

Product Details
Company Profile

Width 2m-4m Composite Geotextile Plastics Geonet Drainage Net for Project Solutions

Products Description

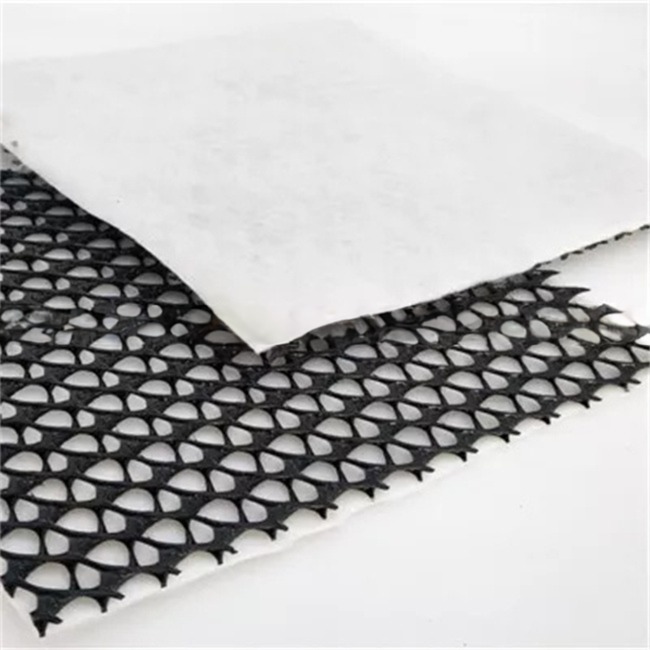

Three-dimensional drainage network (also known as three-dimensional geotechnical drainage plate,
tunnel drainage plate, drainage plate) is composed of three-dimensional plastic network double-sided bonding seepage geotextiles,which can replace the traditional sand and gravel layer, mainly used for landfill,roadbed and drainage of tunnel inner wall.

Property	Unit	NLDG 50/D200	NLDG 63/D200	NLDG 70/D200	NLDG 80/D200	NLDG 90/D200	Test Standard
Drainage Net Specification
Hydraulic conductivity (MD)	m2/s	2.8×10-3	2.8×10-3	3.2×10-3	4.0×10-3	5 x10-3	ASTM D4716
Puncture Resistance	KN/m	0.17	0.17	0.17	0.17	0.17	ASTM D7005
Core Material Geonet Specification
Thickness	mm	5	6.3	7	8	9	ASTM D5199
Density	g/cm-3	0.94	0.94	0.94	0.94	0.94	ASTM D1505
Carbon Black Content	%	2	2	2	2	2	ASTM D1603
Tensile strength (MD)	kN/m	8	10	12	14	16	ASTM D7199
Hydraulic conductivity (MD)	m2/s	6	8	10	12	14	ASTM D4716
Geotextile Specification
Unit weight	g/m2	200	200	200	200	200	/
Geotextile type	Continuous filament non-woven geotextile

Application

It is mainly used in railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage projects.

Advantages

Three-dimensional composite drainage network is a new geosynthetic material. The structure is a three - dimensional geotextile core. The 3d geotextile consists of a thick vertical rib and a diagonal rib at the top and bottom. Groundwater that can quickly drain off roads has its own pore maintenance system that blocks capillary water under high loads. At the same time, it can also play isolation and foundation reinforcement. A new geosynthetic material. The 3d composite drainage network is made of special 3d geotextiles. A combination of geotextiles (backfiltration) and geotextiles (drainage and protection) provides a complete "backfiltrat

Customer Photos

Company Information

COMPANY PROFILE

Shandong Luxin New Materials Co., Ltd. is located in Tai'an, Shandong, China, with beautiful scenery and elegant environment. Shandong Luxin New Materials Co., Ltd. is a leading manufacturer of geosynthetics, which are widely used in construction, aquaculture and agriculture. We offer a full range of products: geomembranes, geotextiles and geogrids and geosynthetic clay liners. We specialize in the design, manufacture and installation of geomembrane liners for a variety of projects such as storage tanks, fish and shrimp ponds, biodigesters, landfills, reservoirs, canals, energy power plants, vapor barriers and wastewater treatment. our Products are widely recognized in the United States, Mexico, Southeast Asia, the Middle East, Africa and other parts of the world. Our commitment to innovation, focus on quality and our industry expertise gives us the flexibility to work with customers to develop custom, fit-for-purpose solutions. We welcome your inquiry

FAQ

Q1: Are you trading company or manufacturer? We are factory.

Q2 : Do you provide samples? is it free or extra? Yes, we could offer the sample but do not pay the cost of freight.

Q3 : Do you accept customization? OEM can be acceptable.We can produce according to your indicators.

Q4 : How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q5 : What is your payment terms? L/C ,D/A ,D/P ,T/T ,Western Union ,Money Gram.
